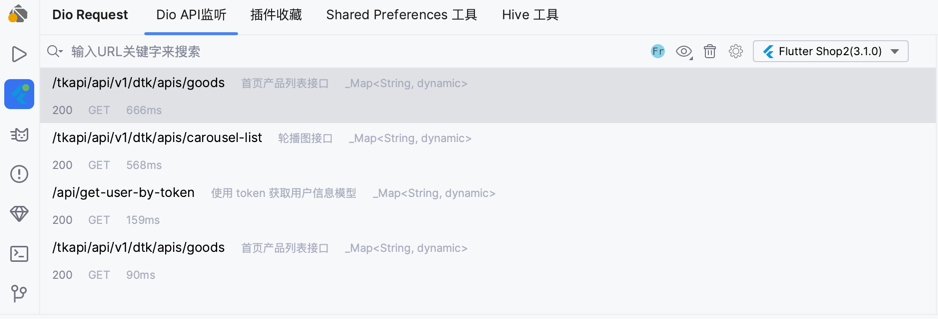

Dio Request Monitoring

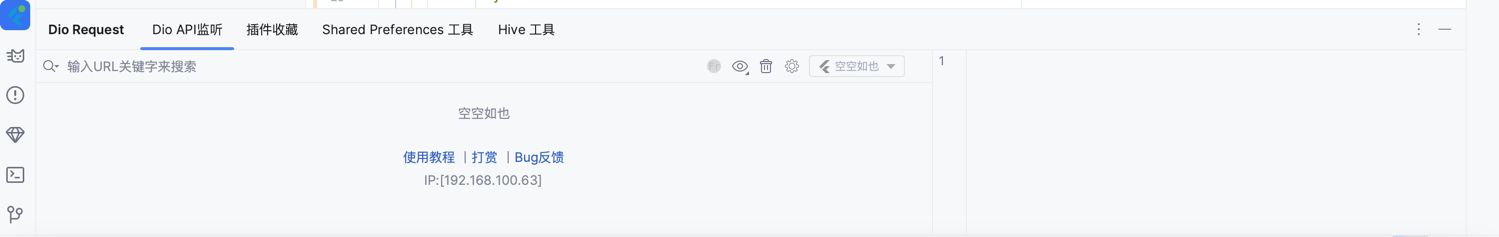

1. Window Preview

If you can't find this window, it may not be displayed by default. You need to manually open it from the menu bar: View -> Tool Windows -> Dio Request

2. Service Running Status

If you see a small green dot, it indicates the service is running and ready for connection.

3. Getting Started

Add Dependency

 dd_check_plugin: ^lastVersion

Install Dependencies

flutter pub get

Write Code

Pass your Dio singleton class to the plugin. The plugin will add an interceptor to monitor requests and send request models to the FlutterX plugin.

    void main(){
    DdCheckPlugin().init(Dio(),
        initHost: "192.168.100.63",
        port: 9999,
        projectName: 'App Name');
}

Explanation

Here's a simple explanation of how this feature works: The FlutterX plugin runs a Socket server, then connects through the initHost in the DdCheckPlugin#init function for data transmission. Source code:

Below are the parameter descriptions for the DdCheckPlugin#init function:

Parameter	Description
initHost	Your local IP address. Don't set it to 127.0.0.1, otherwise it won't connect in real device mode. Type 1 and the plugin will provide auto-completion for selection
port	Listening port, default is 9999. Can be changed in settings. No need to change unless special requirements. Remember to restart AS after modifying this setting
projectName	Customize your project name
customCoverterResponseData	Here you can modify the data model sent to IDEA. Usually no need to change, but you can add extra note information
timeOut	Timeout for connecting to the IDEA plugin
hostHandle	If initHost is not provided, the function will scan your IP range and try to auto-connect. Usually not needed
version	Data transmission format version, usually no need to change
conectSuccess	Callback for successful plugin connection, returns a connected socket object. Usually not needed
extend	Other tool extensions, such as Hive tool extension: HiveToolManager. You can also implement the ServerMessageHandle interface to handle data sent from the IDEA plugin

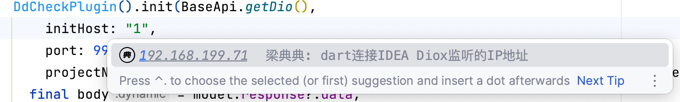

4. Auto-complete initHost

The plugin will automatically recognize your IP address and provide suggestions.

5. Adding Notes to APIs

Note

Requires FlutterX version 3.8.0+

Use the customCoverterResponseData property to customize the response model sent to the IDE. See the example below:

    DdCheckPlugin().init(
        BaseApi.getDio(),
        customCoverterResponseData: _customCoverterResponseData
);

SendResponseModel _customCoverterResponseData(SendResponseModel sendResponseModel) {
  final notes = <String>[];
  if (sendResponseModel.url.contains("/tkapi/api/v1/dtk/apis/goods")) {
    notes.add("Home product list API");
  } else if (sendResponseModel.url.contains("/tkapi/api/v1/dtk/apis/carousel-list")) {
    notes.add("Carousel API");
  } else if (sendResponseModel.url.contains("/api/get-user-by-token")) {
    notes.add("Get user info by token API");
  }
  notes.add("${sendResponseModel.response?.data.runtimeType}"); //Add response return type
  return sendResponseModel.copyWith(extendNotes: notes);
}

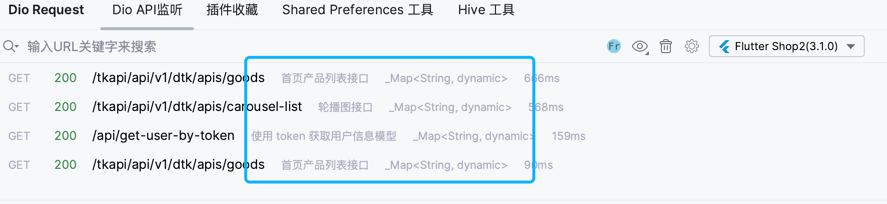

As shown in the image, string arrays in SendResponseModel#extendNotes will be displayed as tags in a loop under the URL.

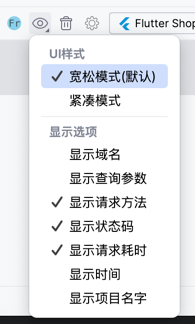

If there are too many notes, it's recommended to use relaxed mode for display.

Here's my configuration:

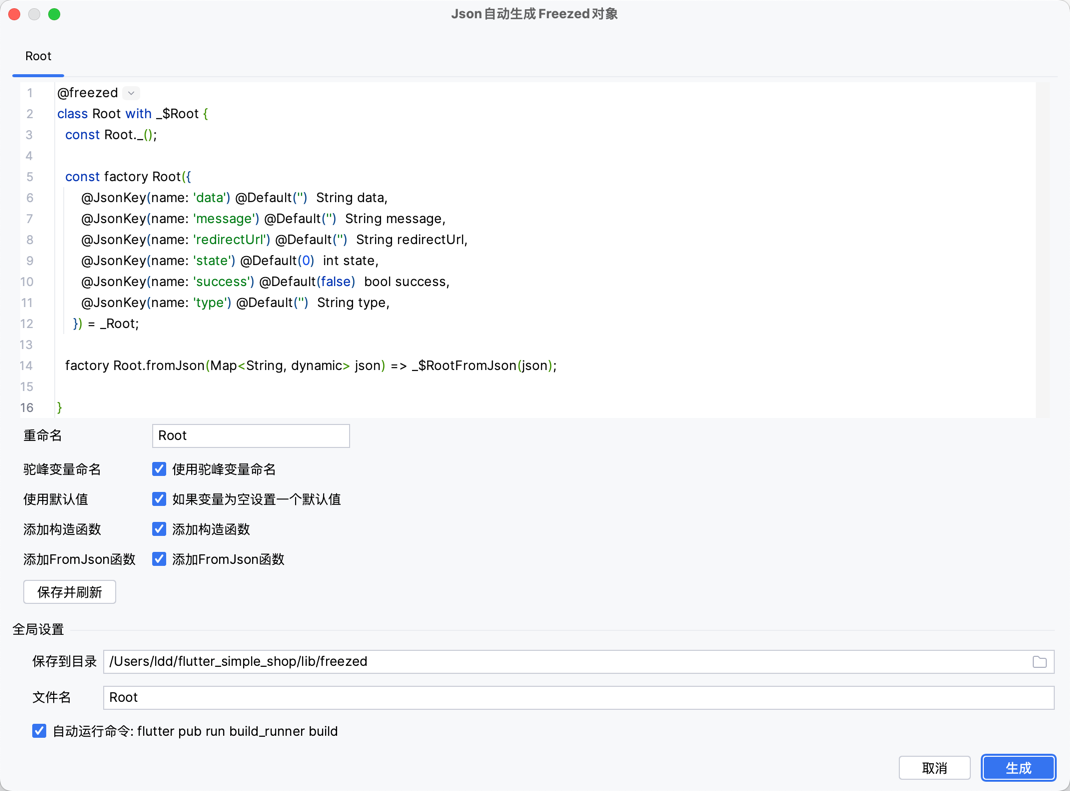

6. Json to Freezed Model

If you don't know what freezed is, it's highly recommended to learn about it. Link

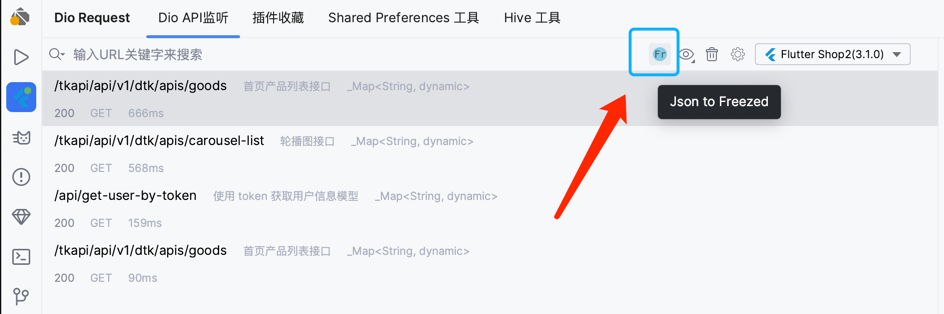

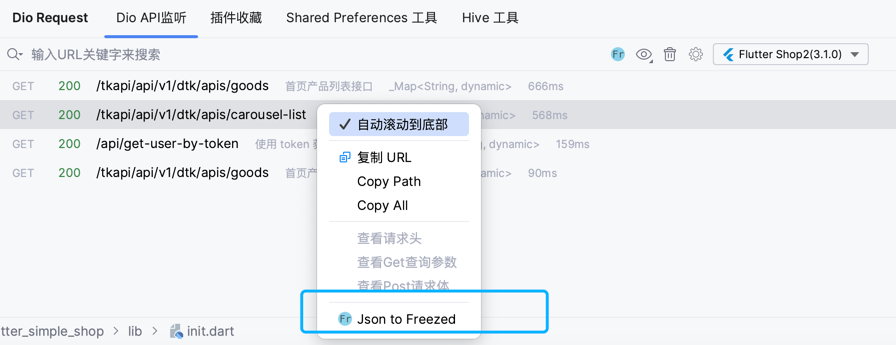

After selecting an API, click this icon to open the JSON to Freezed model configuration dialog. Or right-click on the API to find this option in the context menu.
